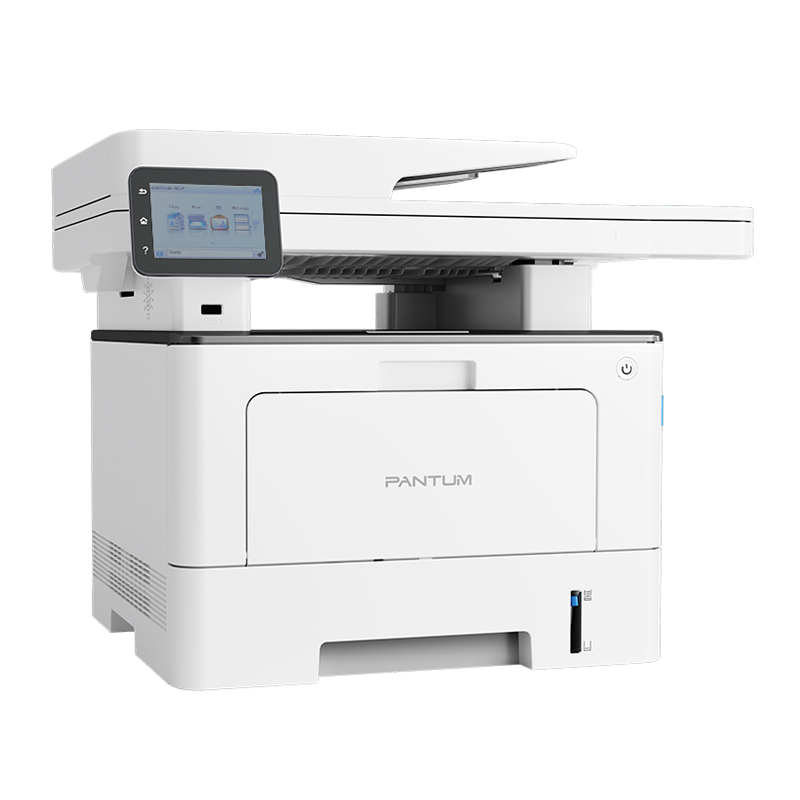

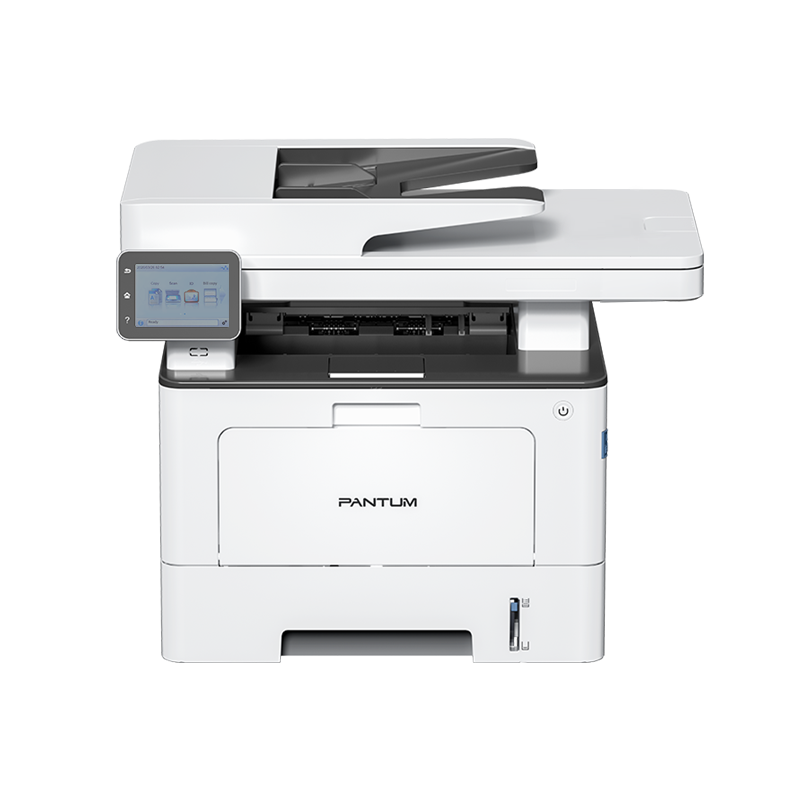

BM5300ADN Multifunction Laser Printer

General

• Control Panel:3.5-inch touchscreen
• Processor speed:1.2 GHz
• Memory:1 GB
• Hard drive:No
• Recommended monthly duty cycle:750 ~ 4,000 pages
• Maximum monthly duty cycle:100,000 pages
• Interface:Hi-Speed ​​USB 2.0; Ethernet 10/100/1000Base-Tx; Front USB HOST (1), rear USB DEV (1)
• Input voltage:
  110V: 110–127VAC, 50/60Hz, 12A

  220 V: 220–240 V AC, 50/60 Hz, 6.5 A

• Energy consumption:Printing ≤650 W; Standby ≤8 W; Sleep ≤1.4 W; Power off ≤0.5 W
• Energy Star Certification:Energy Star 3.2
• Noise:Ready ≤30 dB(A); Print ≤56 dB(A); Scan ≤56 dB(A); Copy ≤57 dB(A); Quiet Mode ≤50 dB(A)
• Operating environment:Temperature 10–32 ℃ / Humidity 20–80 % / Altitude ≤3000 m

Impression

• Print speed:42 ppm (A4), 44 ppm (Letter), 70 ppm (A5 long edge)
• Duplex printing speed:20 ppm (A4), 18 ppm (Letter)
• First impression:≤5.9 s
• Print languages:PCL5e, PCL6, PS, GDI
• Automatic duplex:Yeah
• Printing from USB:Yeah
• Mobile printing:AirPrint, Mopria™, Mopria Scanner, Pantum App (iOS / Android)
• NFC:No
• Supported operating systems:
  Windows Server 2008 / 2012 / 2016 / 2019 / 2022 / XP / 7 / 8 / 8.1 / 10 / 11 (32/64 bit)

  Mac OS 10.10 ~ 14.3

  Linux: Ubuntu 16.04 / 18.04 / 20.04 / 22.04 / 24.04 / Debian 10 / CentOS 7 / Astra Linux V1.6 / Redhat 8.2 / CentOS 8.2

  Android 8.0+ / iOS 13+ / HarmonyOS 2–4 and HarmonyOS NEXT

• Additional features:Booklet printing, USB printing, silent printing, wrinkle-free envelope printing, confidential printing, PDF printing

Copy

• Copy speed:FB: 42 cpm (A4), 44 cpm (Letter); ADF: 40 cpm; Duplex ADF: 20 pages/min
• First copy:FB ≤10 s; ADF ≤11s; Duplex ≤20s
• Copy modes:Automatic, Text, Image, Text + Image
• Special modes:Receipt Copy, ID Card Copy (Auto Correction), All-in-One Copy, Clone Copy, Poster Copy, Copy by Copy, Binding Margin
• Resolution:Max. 600 × 600 dpi
• Zoom:25% – 400%
• Maximum number of copies:99 pages
• Additional features:Original size, double-sided, gloss, zoom, collate, N in 1, clone, poster, flip

Scanning

• Technology:CIS
• Guy:FB + DADF
• Mode:Color, Gray, Black and White
• ADF duplex speed:24 ppm (gray) / 8 ppm (color)
• Single speed ADF:40 ppm (gray) / 13 ppm (color)
• ADF Capacity:50 pages (80 g/m²)
• Maximum resolution:FB 2400×2400 dpi / ADF 600×600 dpi
• Maximum scan size:216x356 mm (Legal)
• Scan destination:PC, email, FTP, SMB, USB
• Scan formats:PDF, TIFF, JPG, BMP, PNG, OFD, DOCX, XLS, XLSX, PPTX, TXT, Searchable PDF
• Pantum Scanning Software:Yeah
• Additional features:OCR, pull/push scanning

Paper handling

• Inbox:Standard: 250 pages / Multipurpose: 60 pages / Optional: 550 pages × 2 (max. 1410 pages)
• Outbox:150 pages
• Full exit detection:Yeah
• Optional accessory:PT-511H (550-page tray)
• Types of paper:Plain, Thick, Transparency, Cardstock, Label, Envelope, Thin, Recycled
• Paper sizes:A4, A5, JIS B5, ISO B5, A6, Letter, Legal, Executive, Folio, Oficio, etc.
• Weight:
  Standard tray: 60–120 g/m²

  Multi-purpose tray: 60–200 g/m²

  Optional tray: 60–120 g/m²


Consumables

• Guy:Toner cartridge and drum unit
• Initial Toner:TL-*5220 (3,000 pages)
• Initial drum:DL-*5220 (30,000 pages)

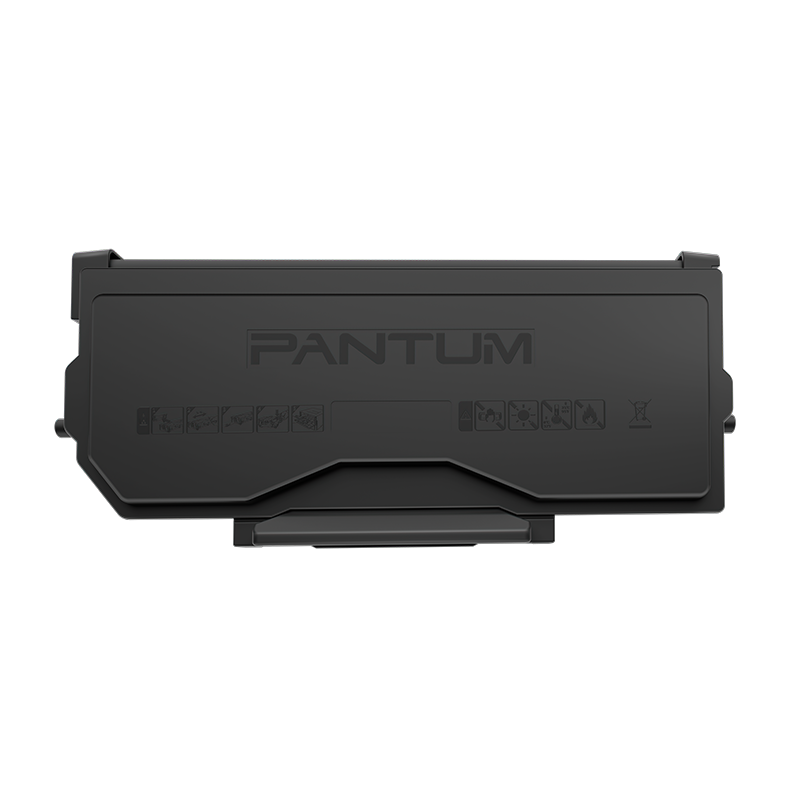

• Standard Toner:TL-*5220 (3,000 pages) / TL-*5220H (6,000 pages) / TL-*5220X (15,000 pages)
• Standard drum:DL-*5220 (30,000 pages)

Packaging

• Printer Dimensions (D × W × H):476 × 368 × 378 mm
• Package Dimensions (D × W × H):559 × 444 × 488 mm
• Net weight:13.1 kg (with consumables)
• Gross weight:16 kg
