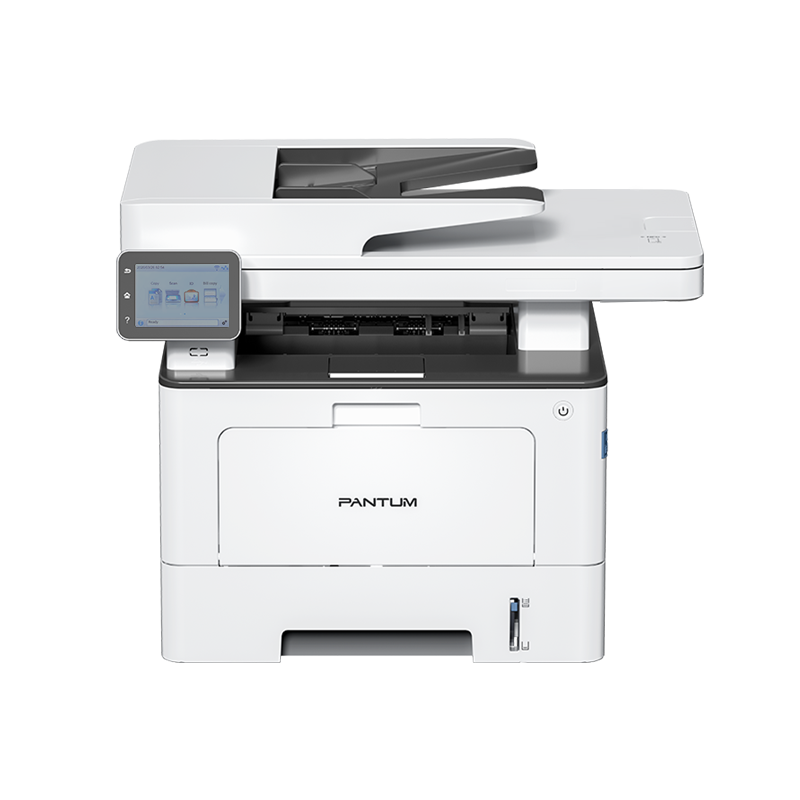

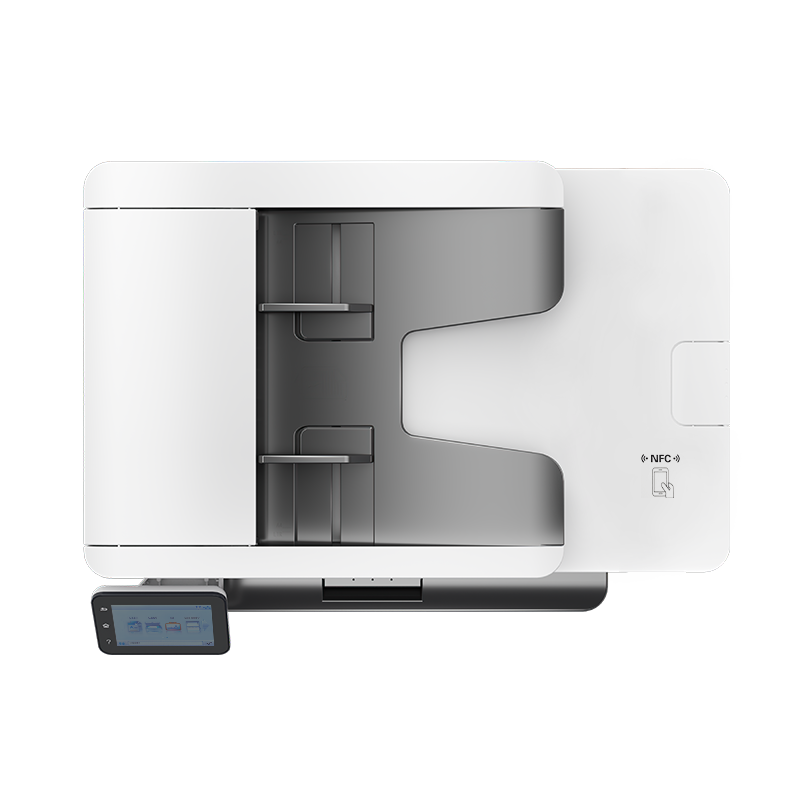

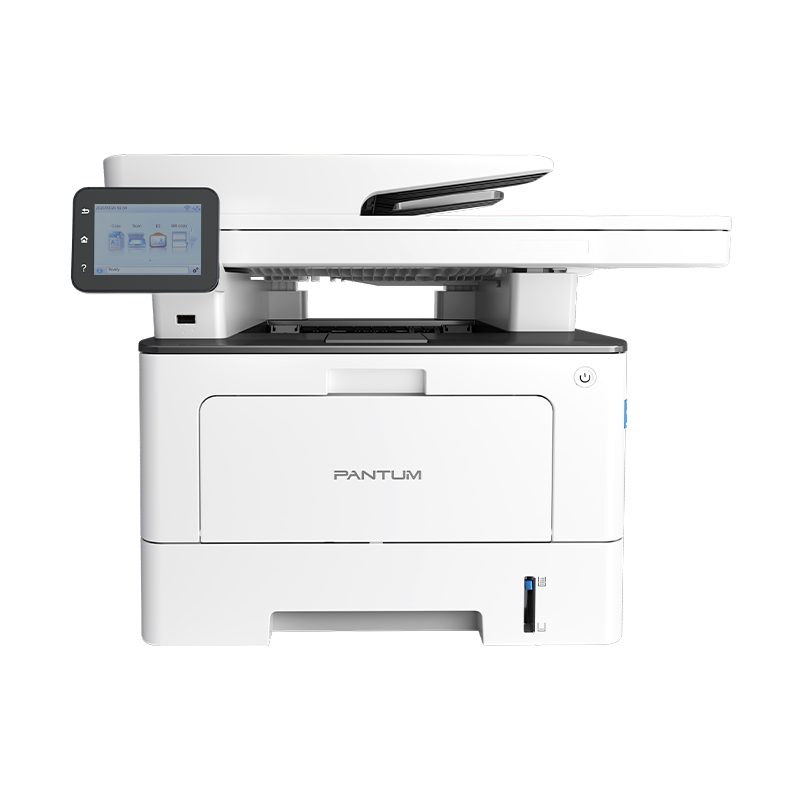

BM5300ADW Multifunction Laser Printer

-Print speed: 42 ppm
-Connection method: USB+NET+WiFi
-First page out time: less than 5.9 seconds
-Number of pages printed per month: 100,000
-Scan Type: Flatbed and DADF scanner, offering a legal-size flatbed scanner
-Scanning resolution: max. 2400 x 2400 dpi
-Interface: High Speed ​​USB 2.0;
IEEE 802.3 10/100/1000Base-Tx;
WiFi (2.4G/5G): IEEE 802.11a/b/g/n+Bluetooth; USB interface: front USB HOST (1), rear USB DEV (1); Bluetooth interface
-Touch screen: yes
-Consumables: TL-B5220; TL-B5220H; TL-B5220X; DL-B5220
¿Necesitas un presupuesto formal, factura o compra institucional? Solicita una cotización y te enviaremos precio, disponibilidad y tiempos de entrega.
Solicitar cotización
Ask a question

Ask a Question

* Required fields

Size guide Share
Descripción
Caracteristicas

Automatic, high-speed duplex printing efficiency

Boost your productivity with fast print speeds of up to (A4) / 70 ppm (A5L). Simplify document management with automatic duplex printing, copying, and scanning via a 50-page duplex automatic document feeder (DADF), improving efficiency and reducing manual effort.

Protect information with advanced data security

Protect sensitive information with a 4-digit release code, ensuring only authorized users access print jobs and preventing data leaks. Secure your network printing environment with built-in support for IPsec, SSL/TLS, and 802.1x, protecting against unauthorized access and potential threats.

Simplify IT management with seamless control and monitoring

Leverage Pantum's software development kit (SDK) to integrate with mainstream managed print services (MPS) software, enabling advanced remote control, management, and user restriction functions. IT administrators and users can access the printer from a web browser by simply entering the IP address in the URL and directly check or change settings.

Designed for professional document handling

For industries that require legal-sized documents, such as law firms or government offices, the BM5300 series offers a legal-sized flatbed scanner specifically tailored to your document handling needs.

Fast Wi-Fi Direct connectivity in 10 seconds

Connect to the printer via Wi-Fi Direct in just 10 seconds, making it easy to print without an internet connection—ideal for fast, secure printing needs.

High-capacity paper handling for large jobs

Support for a wide range of printing needs with expandable paper handling options. Two optional 550-sheet trays increase the maximum paper input capacity to 1,410 sheets, ensuring you're prepared for a high volume of work.

Connectivity at your fingertips

Enjoy a variety of connection methods, including USB, Ethernet, and Wi-Fi, to meet your printing needs with greater security. Simplify the Wi-Fi setup process with Bluetooth, allowing the printer to quickly identify and connect to your Wi-Fi network. Experience reliable and fast printing with support for dual-band 2.4 GHz and 5 GHz Wi-Fi, ensuring you can always find the best frequency band for your network. Plus, print directly from your mobile phone with AirPrint, Mopria™ Print Service, and Mopria Scan—no dedicated mobile app required—making it incredibly easy to print files and photos from your iOS or Android device, wherever you are.

High-yield, cost-effective toner cartridges

Handle high print volumes with ease, thanks to high-capacity toner cartridges that can print up to 15,000* pages, reducing operating costs and downtime.

General

  • Control Panel:3.5-inch touchscreen
  • Processor speed:1.2 GHz
  • Memory:1 GB
  • Hard drive:No
  • Recommended monthly duty cycle:750 ~ 4000 pages
  • Maximum monthly duty cycle:100,000 pages
  • Interface:Hi-Speed ​​USB 2.0; Ethernet 10/100/1000Base-Tx; WiFi (2.4G/5G) IEEE 802.11a/b/g/n + Bluetooth; Front USB HOST (1), rear USB DEV (1)
  • Input voltage:
    110V: 110–127VAC, 50/60Hz, 12A

    220 V: 220–240 V AC, 50/60 Hz, 6.5 A
  • Energy consumption:Printing ≤650 W; Standby ≤8 W; Sleep ≤1.4 W; Power off ≤0.5 W
  • Energy Star Certification:Energy Star 3.2
  • Noise:Ready ≤30 dB(A); Print ≤56 dB(A); Scan ≤56 dB(A); Copy ≤57 dB(A); Quiet ≤50 dB(A)
  • Operating environment:Temperature 10–32 ℃ / Humidity 20–80 % / Altitude ≤3000 m

Impression

  • Print speed:42 ppm (A4), 44 ppm (Letter), 70 ppm (A5 long edge), 9 ppm (A5 short edge)
  • Duplex printing speed:20 ppm (A4)
  • Time to first impression:≤5.9 s
  • Print languages:PCL5e, PCL6, PS, GDI
  • Duplex printing:Automatic
  • Printing from USB:Yeah
  • Mobile printing:AirPrint, Mopria™, Mopria Scanner, Pantum App (iOS/Android)
  • NFC:Yes (except iOS)
  • Supported operating systems:
    Windows Server 2008 / 2012 / 2016 / 2019 / 2022 / XP / 7 / 8 / 8.1 / 10 / 11 (32/64 bit)

    Mac OS 10.10 ~ 14.3

    Linux: Ubuntu 16.04 / 18.04 / 20.04 / 22.04 / 24.04 / Debian 10 / CentOS 7 / Astra Linux V1.6 / RedHat 8.2 / CentOS 8.2

    Android 8.0+ / iOS 13+ / HarmonyOS 2–4 and HarmonyOS NEXT
  • Other printing functions:Brochure printing, USB printing, silent printing, wrinkle-free envelope printing, confidential printing, PDF printing

Copy

  • Copy speed:FB A4: 42 cpm; Letter: 44 cpm; Single ADF: 40 cpm; Duplex ADF: 20 pages/min
  • First copy:FB ≤10 s; ADF ≤11s; Duplex ≤20s
  • Copy modes:Automatic, Text and Image, Text, Image
  • Special modes:Receipt Copy, ID Card Copy (Auto Correction), All-in-One Copy, Clone Copy, Poster Copy, Copy by Copy, Binding Margin
  • Copy resolution:FB: 600×600 dpi / ADF: 600×600 dpi
  • Zoom:25% – 400%
  • Maximum number of copies:99 pages
  • Additional features:Original size, copy to, double-sided, brightness, zoom, collate, N in 1, clone, poster, flip

Scanning

  • Technology:CIS
  • Guy:FB + DADF
  • Modes:Color, Gray, Black and White
  • ADF duplex speed:Gray: 24 ppm (48 ipm) / Color: 8 ppm (16 ipm)
  • Single speed ADF:Gray: 40 ppm / Color: 13 ppm
  • ADF Capacity:50 pages
  • Maximum resolution:FB: 2400×2400 dpi (pull) / 1200×1200 dpi (push) / ADF: 600×600 dpi
  • Maximum scan size:216x356 mm (Legal)
  • Scan destination:PC, Email, FTP, SMB, USB
  • Scan formats:PDF, TIFF, JPG, BMP, PNG, OFD, DOCX, XLS, XLSX, PPTX, TXT, Searchable PDF
  • Pantum Scanning Software:Yeah
  • Additional features:OCR

Paper handling

  • Inbox:Standard 250 pages / Multipurpose 60 pages / Optional 550 pages (max. 2) — Total 1,410 pages
  • Outbox:150 pages
  • Full exit detection:Yeah
  • Optional accessory:PT-511H (550-page tray, max. 2)
  • Types of paper:
    Automatic feeder: normal, thick, transparent, thin, recycled

    Multi-purpose tray: regular, thick, cardstock, label, envelope, extra thick

    Optional tray: normal, thick, thin
  • Paper sizes:A4, A5, A6, B5, Letter, Legal, Executive, Folio, Oficio, Various envelopes, Postcards, etc. (min. 80×148 mm / max. 216×356 mm)
  • Weight:
    Standard tray: 60–120 g/m²

    Multipurpose: 60–200 g/m²

    Optional tray: 60–120 g/m²

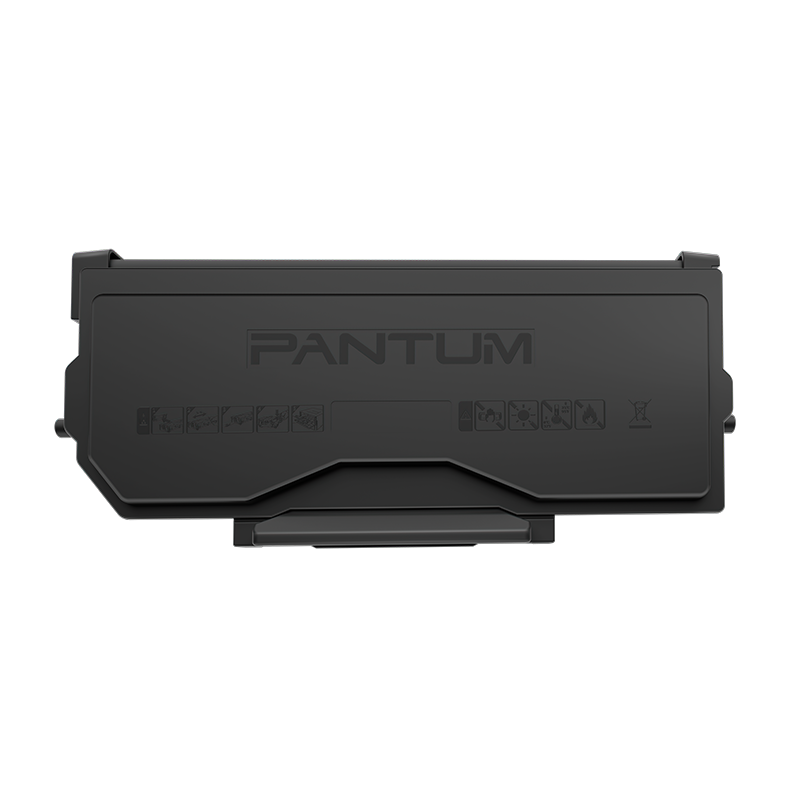

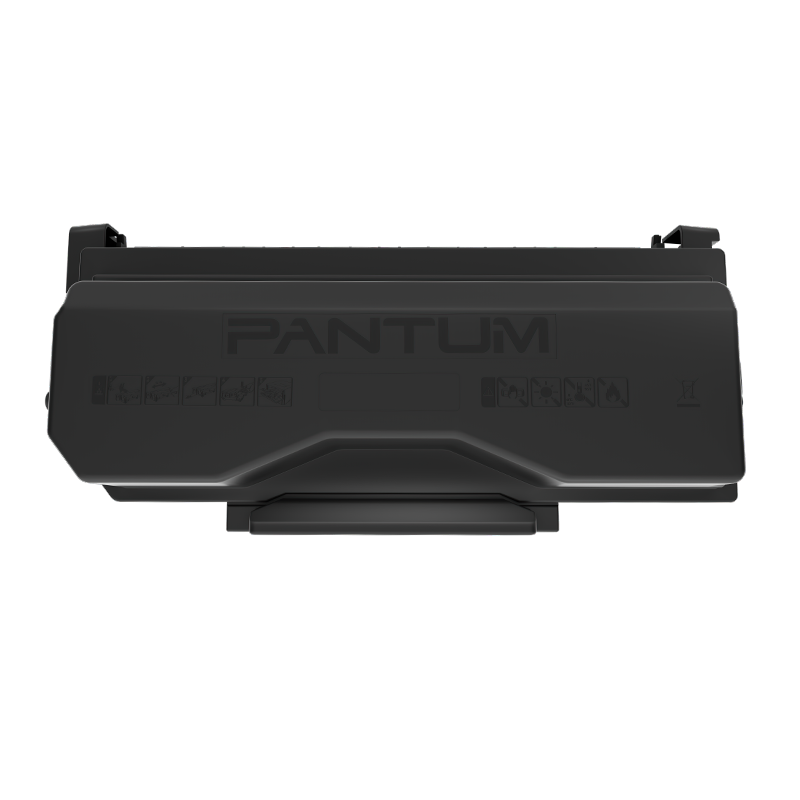

Consumables

  • Guy:Toner cartridge and drum unit
  • Initial Toner:TL-*5220 (3,000 pages)
  • Initial drum:DL-*5220 (30,000 pages)
  • Standard Toner:TL-*5220 (3,000 pages) / TL-*5220H (6,000 pages) / TL-*5220X (15,000 pages)
  • Standard drum:DL-*5220 (30,000 pages)

Packaging

  • Product Dimensions (D × W × H):476 × 368 × 378 mm
  • Package Dimensions (D × W × H):559 × 444 × 488 mm
  • Net weight:13.1 kg (with consumables)
  • Gross weight:16 kg
